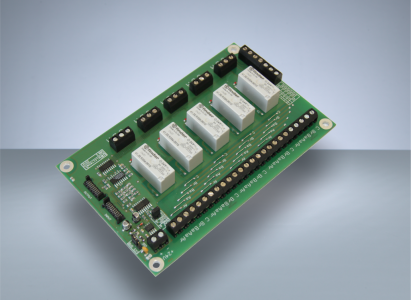

URB 5 – Relay Board
This relay board can be used for 100 V, symmetrical 0 dB audio signals and, e.g., for 24V override relays or command signals.
Controls are either analog by connecting to ground or using a digital bus which is fully compatible with the Dynacord Promatrix DCS-400 sytem.
Addressing is possible using jumpers as DCS-408 or DCS-409.
There is the option of either using the included Mica bus cable or using a screw terminal.
Technical Data:
| Name: | URB 5 |
| Item no.: | 114205 |
| Control: | analog & digital |
| Power supply: | 24 V DC |
| Switching power: | 8 A / 100 V per contact |
| Power consumption: | max. 110 mA |
| Dimensions (in mm): | 100 x 160 x 20 |
