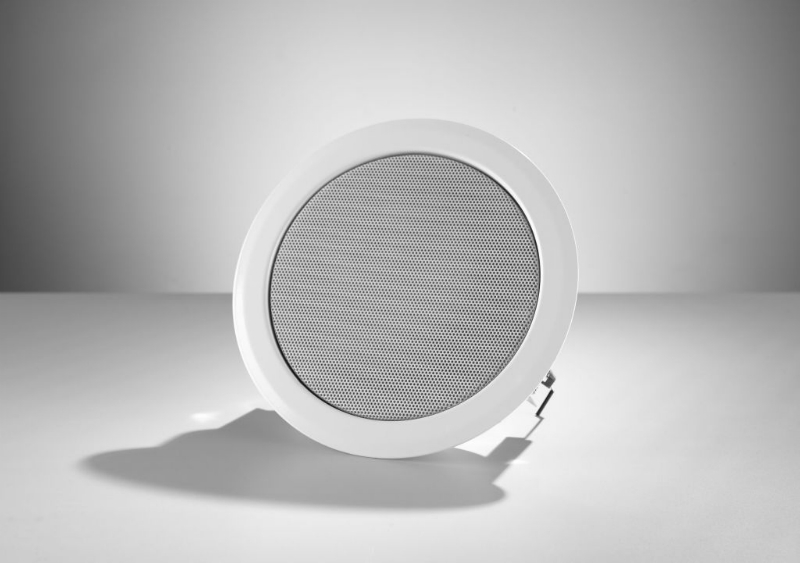

CSM 165-6
A ceiling speaker in a solid metal design for universal use and features which are unusual for a product in this price range, which ensure good sound quality and quick and easy mounting high reliability for the long-term.
Technical Data:
| Name: | CSM 165-6 |
| Item no.: | 108019 |
| Output power: | 6-3-1.5 W / 100 V |
| Sound pressure 1 W/1 m: | 95 dB |
| Sound pressure level: | 104 dB |
| Chassis impedance: | 8 Ohm |
| Transmission range: | 85 Hz to 18,000 Hz |
| Dispersion angle: | 180° (1.6 kHz) |

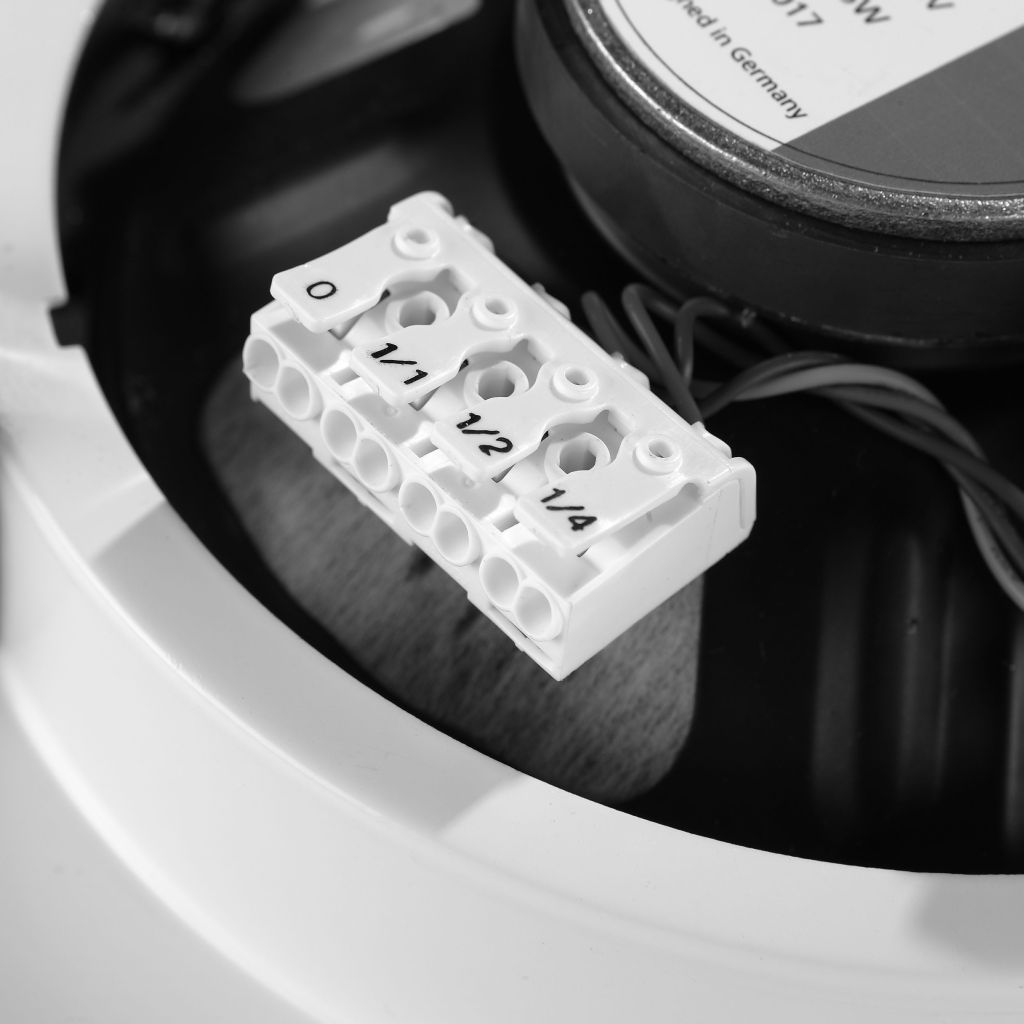

| Connection: | Quick Push Terminal |
| Dimensions (in mm): | 220 x 165 |
| Cut out: | 200 mm |
| Mounting: | 3 spring clips |
| Chassis coating: | Powder coating |
| Color: | RAL 9010 |
| Weight: | 1.4 kg |
Data Sheet:
CSM-165-6 Data Sheet (english)
