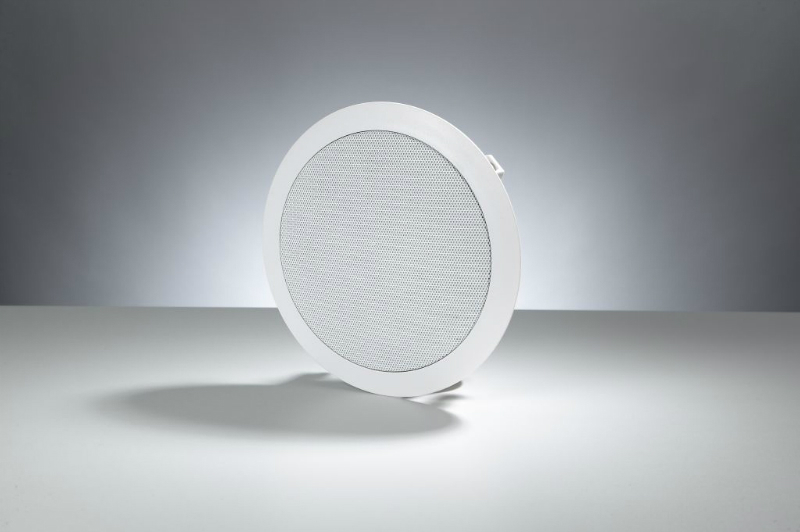

CSP 165/2-30
Plastic ceiling speaker with metal grille.
Elegant design for sophisticated surroundings.
Complex 2-way systems enable superior sound quality. Also available in a square design in the CSPQ series with the same features.
The CSPQ 165-6 is a 6 W, 1-way version of this speaker.
Technische Daten:
| Name: | CSP 165/2-30 |
| Item no.: | 108208 |
| Output power: | 30-15-7.5 W / 100 V |
| Sound pressure 1 W / 1 m: | 90 dB |
| Sound pressure level: | 105 dB |
| Chassis impedance: | 8 Ohm |
| Transmission range: | 90 Hz to 20,000 Hz |
| Dispersion angle: | 180° (1.6 kHz) |
| Connection: | Quick Push Terminal |
| Dimensions (in mm): | 230 x 90 |
| Cut out: | 200 mm |
| Mounting: | 4 mounting claws made of special plastic |
| Color: | RAL 9016 |
| Weight: | 2 kg |
