UMA 6120
NO LONGER AVAILABLE!
Replaced by: UMA 7120 & UMA 7120P

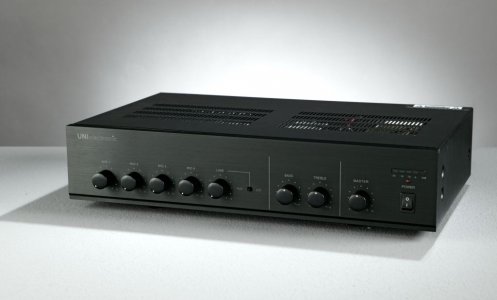

The UNIelectronic UMA 6120 is the allrounder among the PA mixing amps thanks for its generous range of features. Robust design, high reliability and an unbeatable price-performance ratio make it the amp of choice for small and medium-sized PA projects.
120 W output (100 V or 8 Ohms) offer sufficient power. A line output enables the connection of further power amps when necessary. The levels of all five input are adjustable at the front. Sound controls ensure optimal adjustments to the prevailing acoustic conditions. An LED chain displays the power output of the amplifier.
The UMA 6210 has four mic inputs (XLR), two of which can be change to line inputs.
Phantom power can be added for each of the mic limits individually. What is more, priorities can be determined for the mic inputs. All mic inputs have a call station connectors (DIN) and pre-chime functions.
An additional line input (cinch) allows the connection of various high-level sources. Pre- and power amp can be separated, so that an equalizer or similar devices can be added. A connectible 2-tone chime rounds off the large range of features. The UMA 6120 can be operated in 24 V DC emergency power systems. Two mounting brackets (2 RUs) are available as an accessory and permit the mounting in 19“ racks.
Technical Data:
| Name: | UMA 6120 |
| Item no.: | 104206 |
| Power supply: | 230 V (50/60 Hz) |
| Power consumption: | 320 VA |
| Power consumption: at 24 V DC: | 8 A |
| Power output: | 120 W sine (100 V/8 Ohm) |
| Frequency range: | 50-18,000 Hz |
| Total Harmonic Distortion (THD): | < 1 % (1 kHz) |
| Sensitivity/impedance: | Mic 1-4: 0.8 mV at 600 Ohm |
| Aux/CD: 100 mV, 47 kOhm/500 mV/47 kOhm | |
| Outputs: | Speaker 100 V, 70 V, 8 Ohm |
| Signal-to-noise ratio: | Mic 1-4: > 61 dB, Aux/CD: > 70 dB |
| Tone: | Bass: +/- 10 dB at 100 Hz |
| Treble : +/- 10 dB at 10 kHz | |
| Chime: | 2-tone |
| Dimensions (in mm; H x W x D): | 88 x 430 x 300 (2 RUs) |
| Weight: | 10 kg |
